Crawler excavator

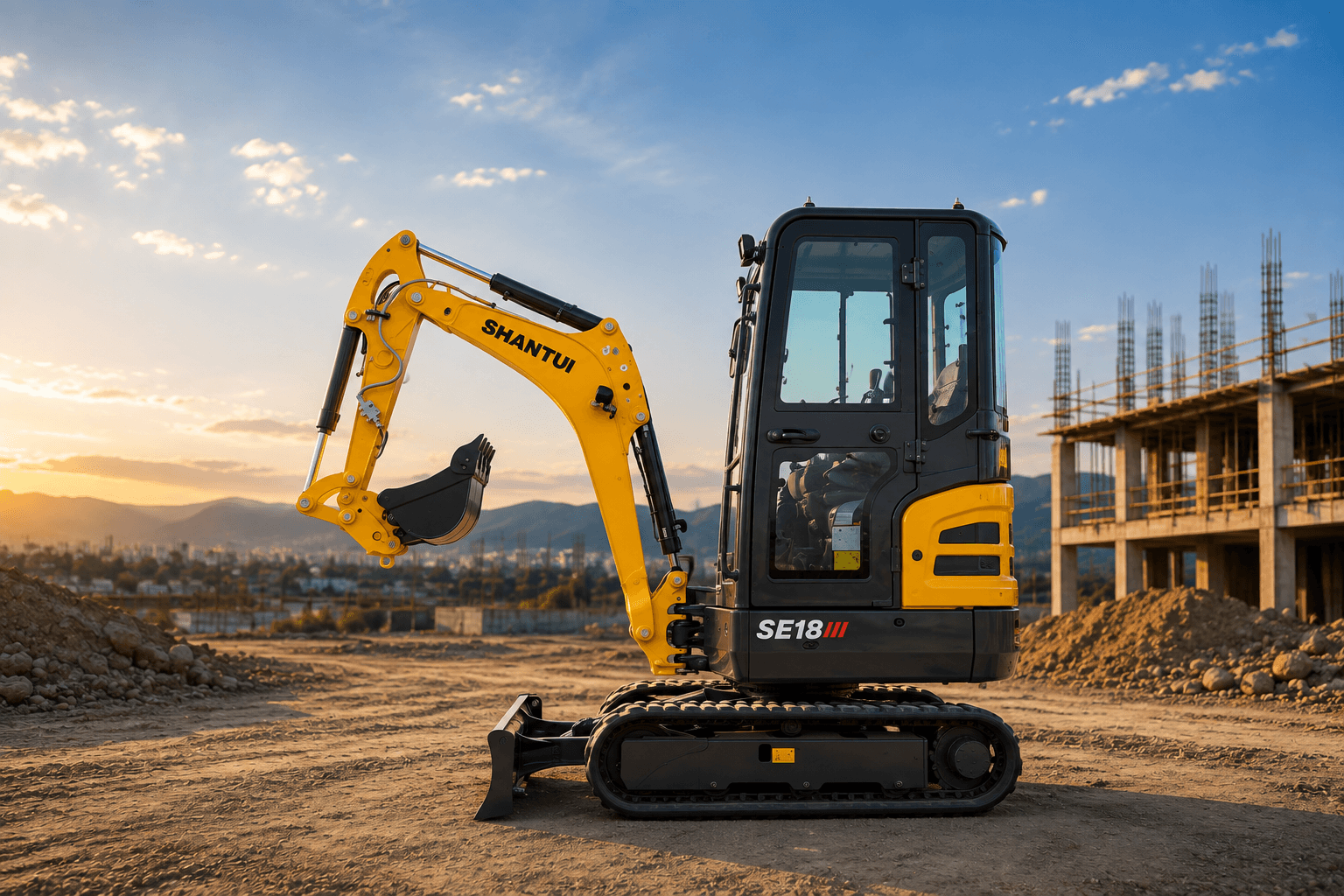

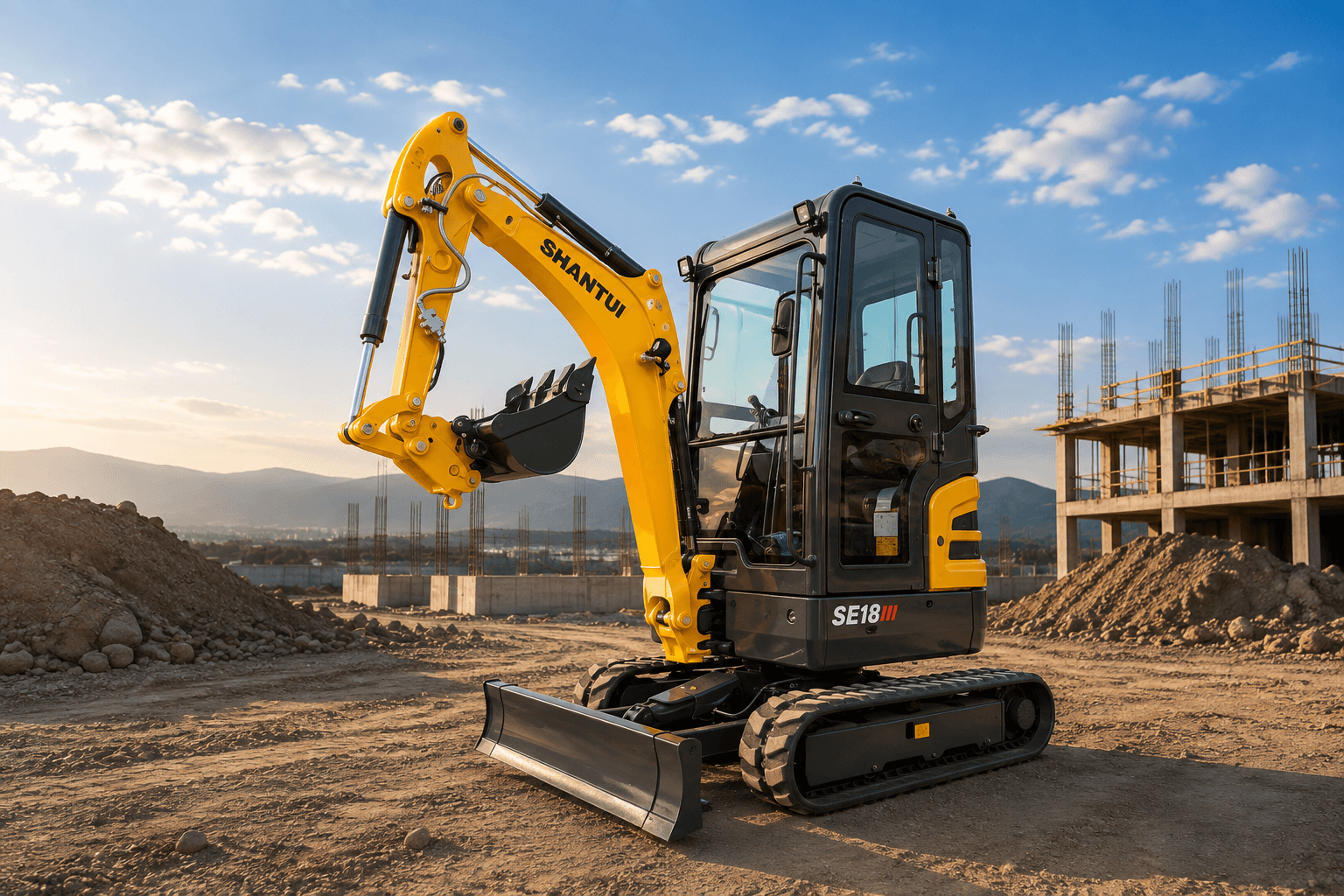

SHANTUI SR18SR – Crawler Excavator
TypeZero-Tail Swing
Operating weight1,880-1,900 kg
EngineKUBOTA D902 (11.8 kW / 15.93 hp)
Bucket capacity0.04 m³
Hydraulic linesyes
The SHANTUI SR18SR combines compact dimensions, stability, and professional performance for everyday excavation tasks. Its Zero-Tail Swing design allows safe operation close to buildings, walls, and confined spaces.
It is an excellent solution for excavation, utility installation, and landscaping projects.
It is an excellent solution for excavation, utility installation, and landscaping projects.
TypeZero-Tail Swing
Operating weight1,880-1,900 kg
EngineKUBOTA D902 (11.8 kW / 15.93 hp)
Bucket capacity0.04 m³
Hydraulic linesyes
Track typerubber / telescopic
Swing boomyes
Hydraulic systemLoad-Sensitive
Overall dimensions3575x1300x2405 mm
Maximum digging force16 kN
Maximum digging height3535 mm
Maximum digging reach3910 mm
Maximum digging depth2270 mm
Swing speed9.5 rpm
Travel speed2.2/4.3 km/h
Fuel tank capacity19 L
Fuel typediesel
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
