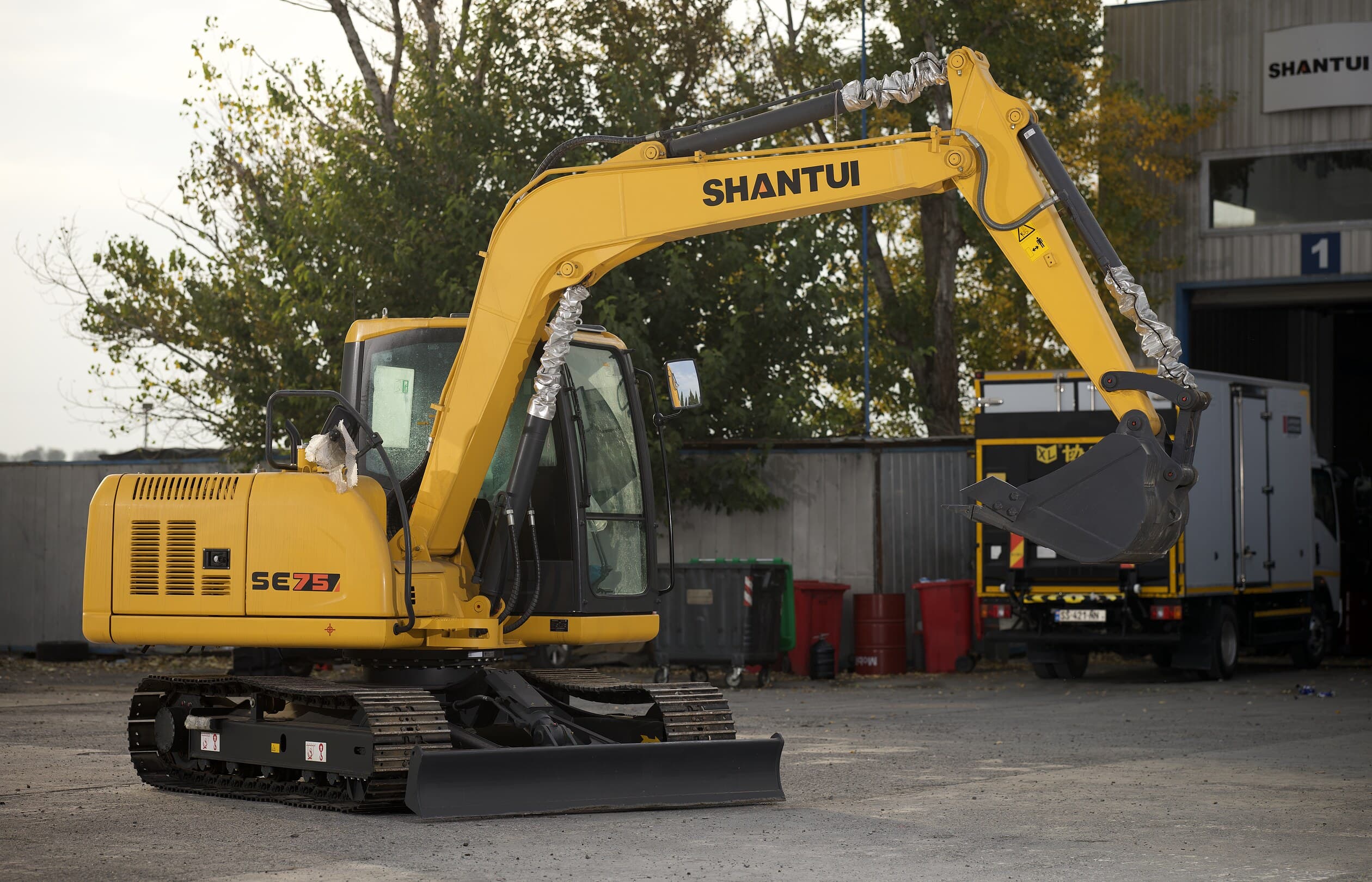

SHANTUI SE75 – Crawler Excavator
Typestandard
Operating weight7,650 kg
EngineKUBOTA V3307T (48.9 kW / 66 hp)
Bucket capacity0.32 m³
Hydraulic linesyes
The SHANTUI SE75 is engineered for high productivity in applications where precision, power, and efficiency are essential. Its electronically controlled load-sensitive hydraulic system provides excellent operator control and faster working cycles.
It is ideal for foundations, utilities, road construction, and municipal infrastructure.
It is ideal for foundations, utilities, road construction, and municipal infrastructure.
Typestandard
Operating weight7,650 kg
EngineKUBOTA V3307T (48.9 kW / 66 hp)
Bucket capacity0.32 m³
Hydraulic linesyes
Track typesteel
Hydraulic systemelectro-proportional, Load-Sensitive
Emission standardEU Stage IIIA
Overall dimensions6240x2260x2680 mm
Maximum digging force66 kN
Maximum digging height7100 mm
Maximum digging reach6375 mm
Maximum digging depth3390 mm
Swing speed10.0 rpm
Travel speed2.9/4.8 km/h
Fuel tank capacity155 L
Fuel typediesel
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
