Crawler excavator

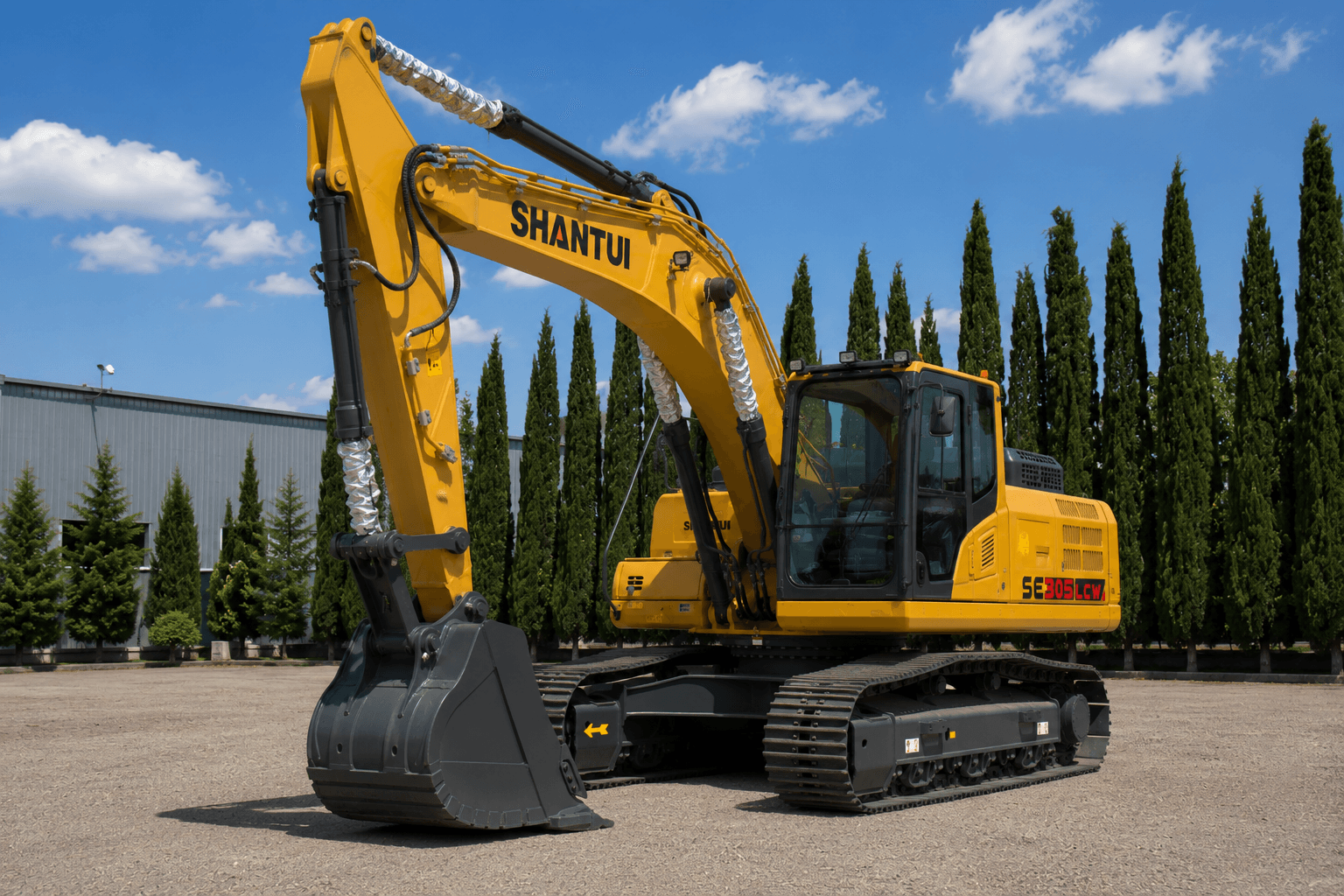

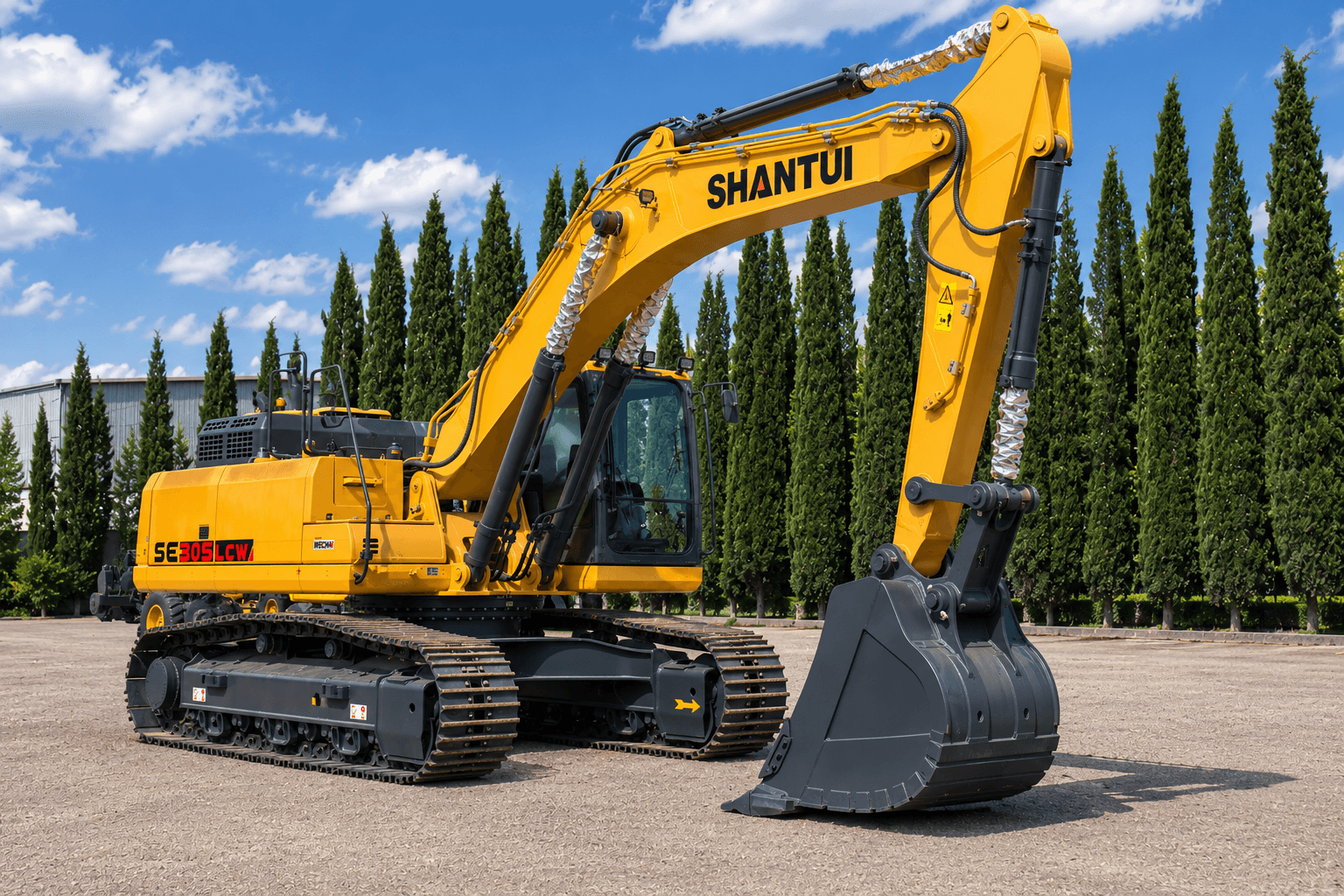

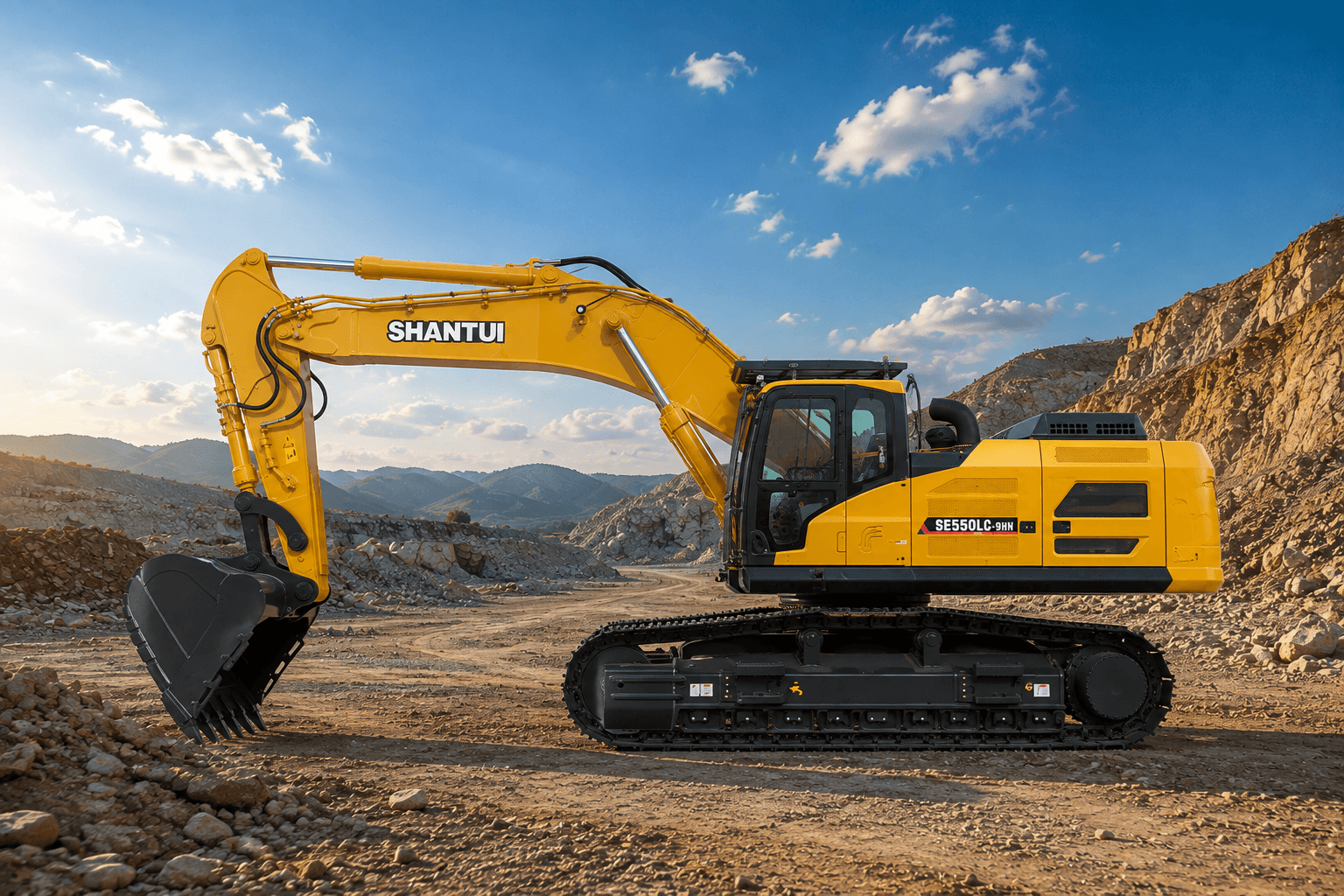

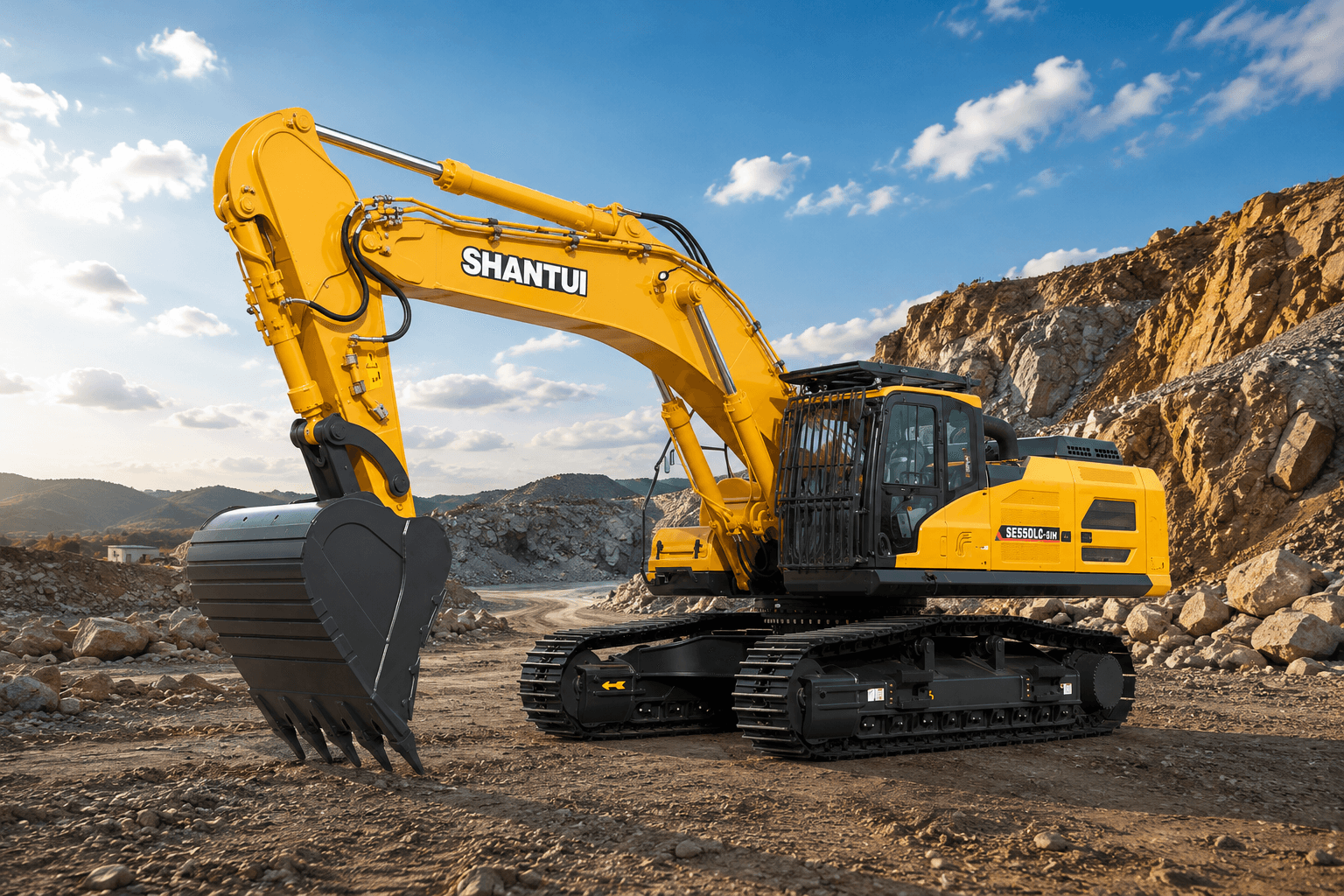

SHANTUI SE550LC – Crawler Excavator
Typestandard
Operating weight60,000 kg
EngineISUZU 6WG1 (300 kW / 408 hp)
Bucket capacity3.2 m³
Hydraulic linesyes
The SHANTUI SE550LC is a heavy-duty excavator built for continuous operation under extreme workloads. Its powerful ISUZU engine, large bucket capacity, and exceptional digging force deliver maximum productivity in quarries, mining sites, and large-scale construction projects.
It is the ideal choice for companies requiring top-tier heavy equipment.
It is the ideal choice for companies requiring top-tier heavy equipment.
Typestandard
Operating weight60,000 kg
EngineISUZU 6WG1 (300 kW / 408 hp)
Bucket capacity3.2 m³
Hydraulic linesyes
Track typesteel
Hydraulic systemLoad-Sensitive
Emission standardEU Stage IIIA
Overall dimensions11775x3585x4140 mm
Maximum digging force310 kN
Maximum digging height10255 mm
Maximum digging reach10765 mm
Maximum digging depth6320 mm
Swing speed0-8.5 rpm
Travel speed3.3/5.6 km/h
Fuel tank capacity720 L
Fuel typediesel
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
