Crawler excavator

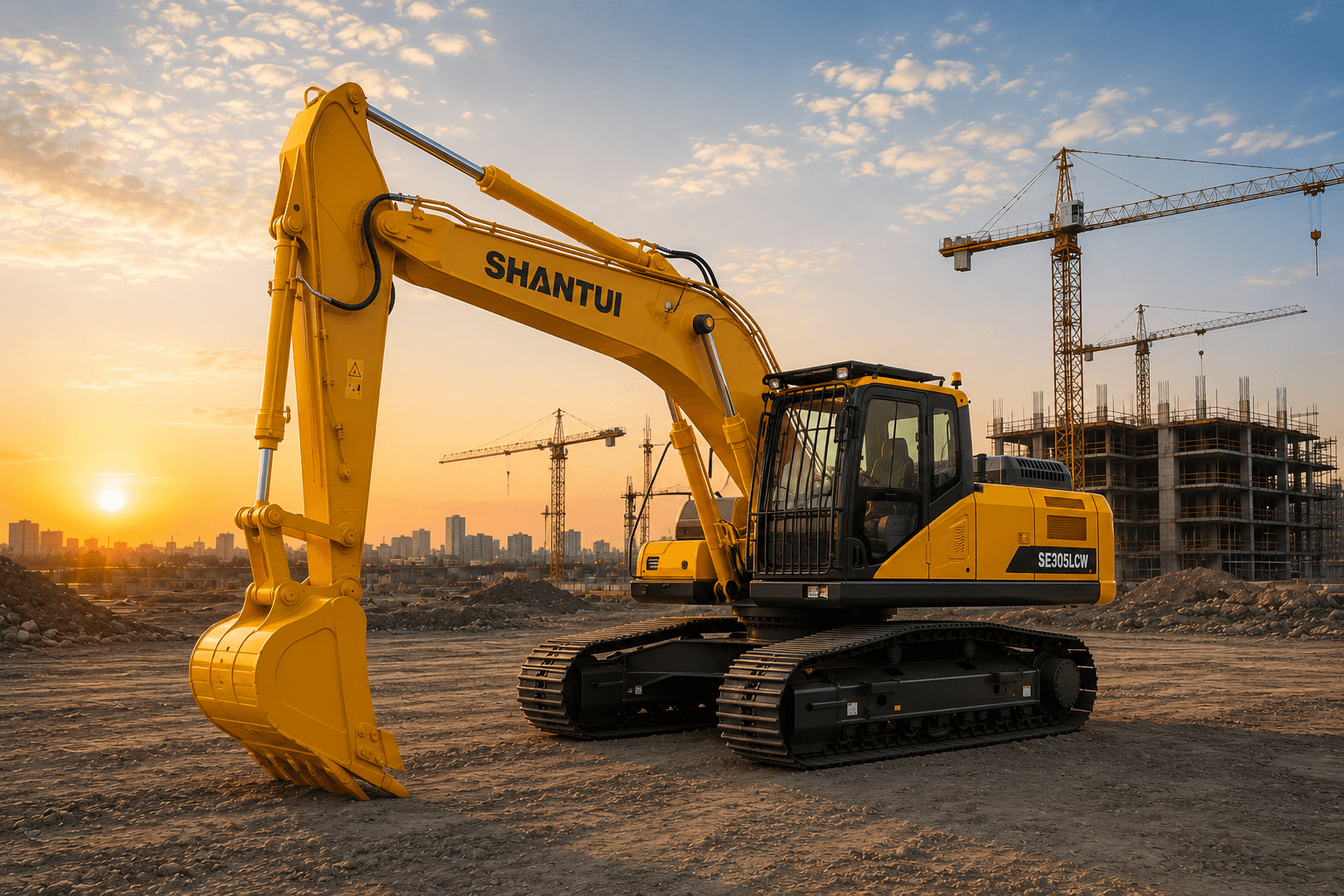

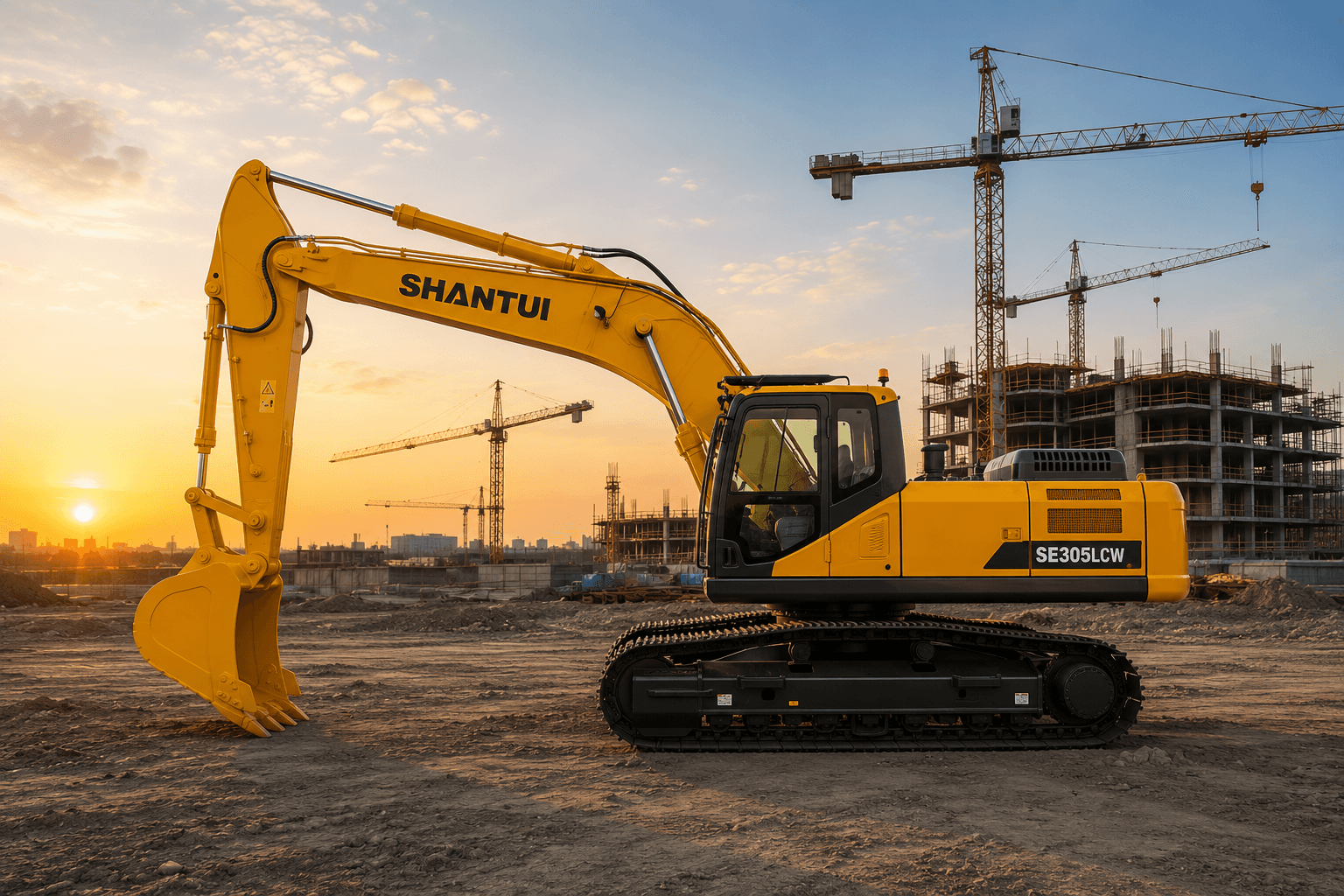

SHANTUI SE305LCW – Crawler Excavator
Typestandard
Operating weight31,500 kg
EngineWEICHAI WP7 (199 kW / 269 hp)
Bucket capacity1.3/1.5 m³
Hydraulic linesyes
The SHANTUI SE305LCW is engineered for maximum productivity in the most demanding working environments. Its high power output, large bucket capacity, and durable construction significantly improve job site efficiency.
It is an ideal solution for quarries, mining operations, and major infrastructure projects.
It is an ideal solution for quarries, mining operations, and major infrastructure projects.
Typestandard
Operating weight31,500 kg
EngineWEICHAI WP7 (199 kW / 269 hp)
Bucket capacity1.3/1.5 m³
Hydraulic linesyes
Track typesteel
Hydraulic systemLoad-Sensitive
Emission standardEU Stage IIIA
Overall dimensions10880x3200x3850 mm
Maximum digging force210 kN
Maximum digging height10030 mm
Maximum digging reach10580 mm
Maximum digging depth6760 mm
Swing speed0-10.0 rpm
Travel speed3.3/5.5 km/h
Fuel tank capacity550 L
Fuel typediesel
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
