Crawler excavator

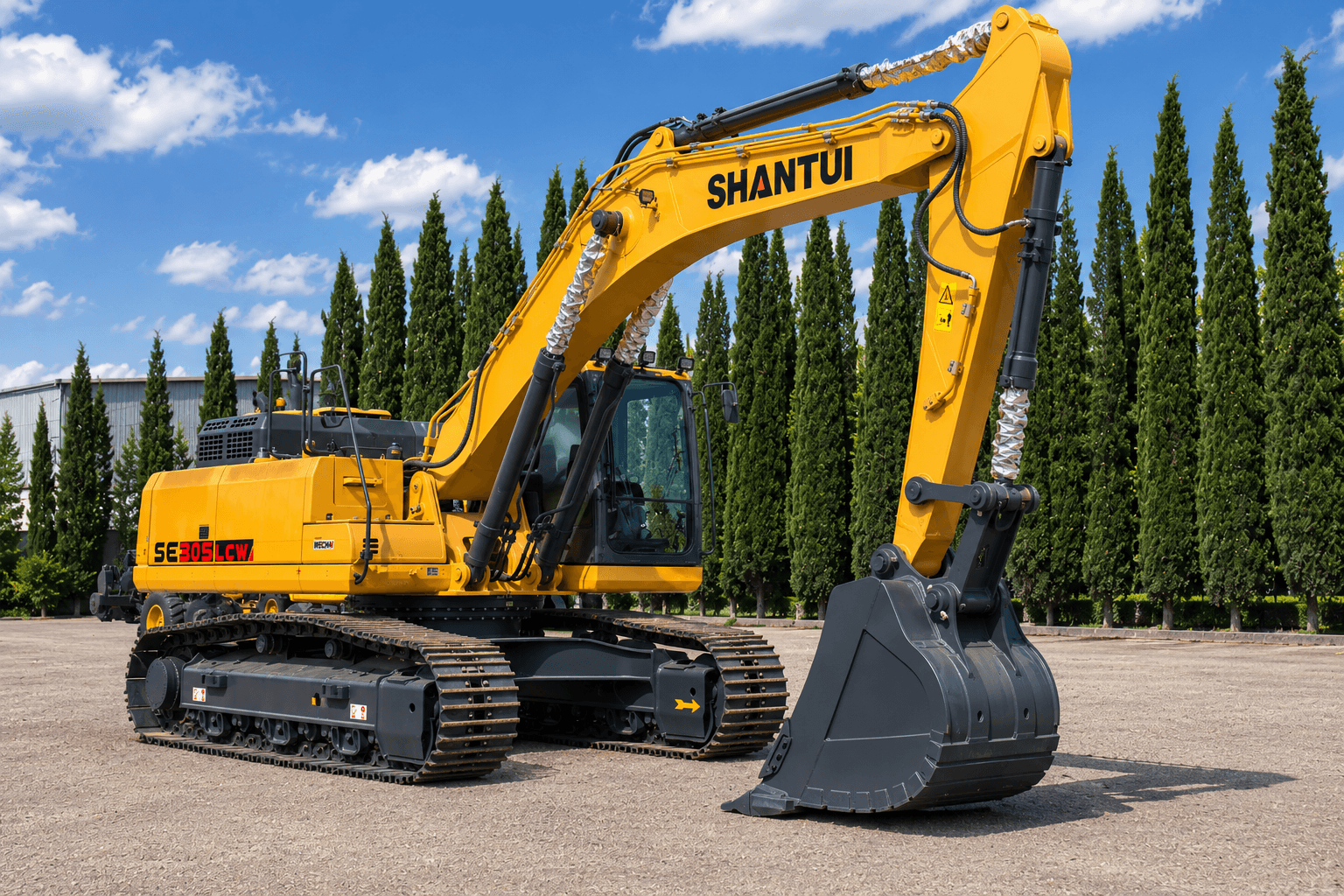

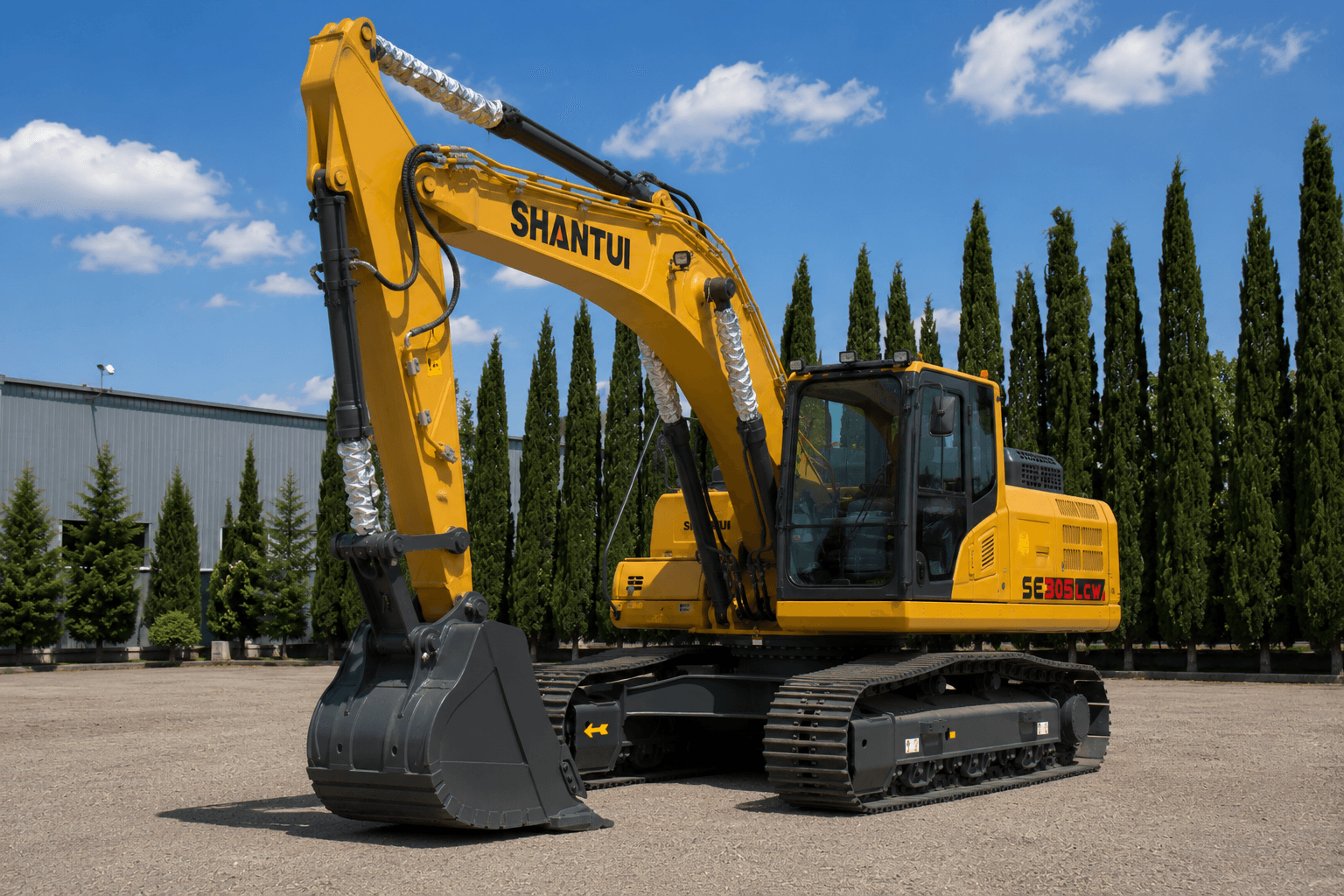

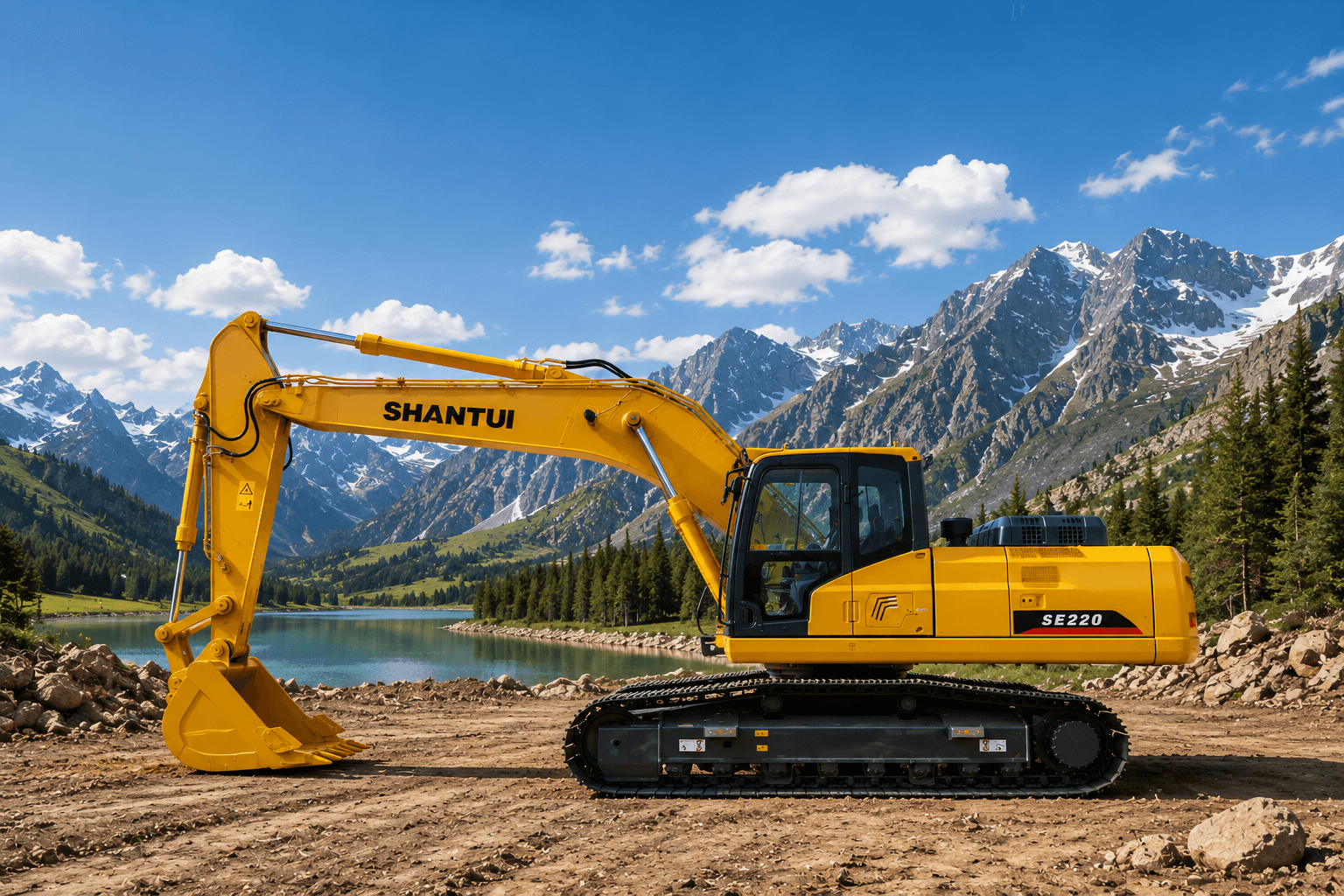

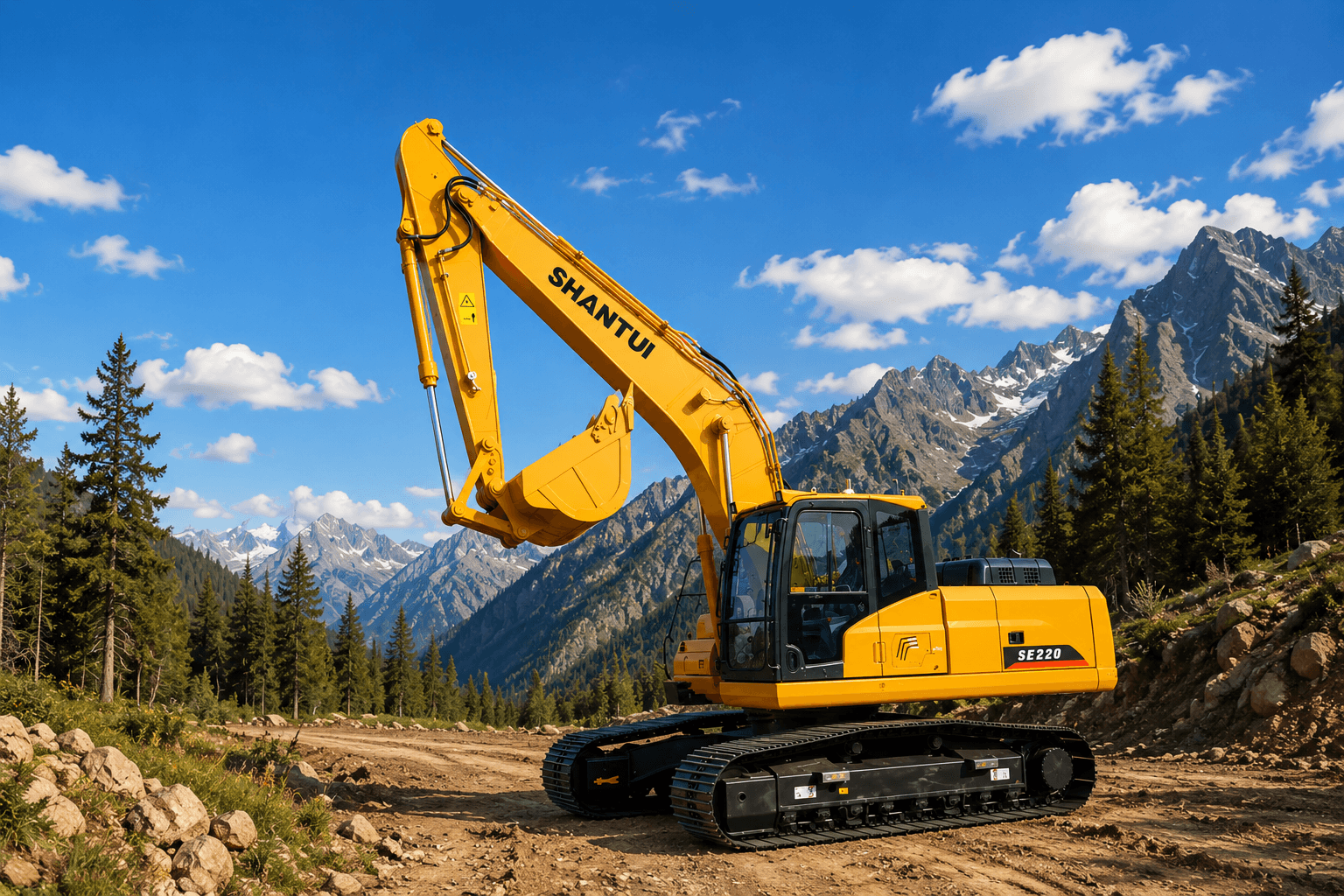

SHANTUI SE220 – Crawler Excavator
Typestandard
Operating weight22,800 kg
EngineCUMMINS B5-9C (112 kW / 152 hp)
Bucket capacity1.05 m³
Hydraulic linesyes
The SHANTUI SE220 is engineered for heavy-duty earthmoving applications where power and continuous productivity are essential. Its large bucket capacity, powerful hydraulic system, and robust construction ensure fast and efficient excavation.
It is ideal for road construction, bridges, quarries, and major infrastructure projects.
It is ideal for road construction, bridges, quarries, and major infrastructure projects.
Typestandard
Operating weight22,800 kg
EngineCUMMINS B5-9C (112 kW / 152 hp)
Bucket capacity1.05 m³
Hydraulic linesyes
Track typesteel
Hydraulic systemLoad-Sensitive
Emission standardEU Stage II
Overall dimensions9605x3080x3070 mm
Maximum digging force127/138 kN
Maximum digging height10100 mm
Maximum digging reach9865 mm
Maximum digging depth6490 mm
Swing speed11.0 rpm
Travel speed3.3/5.1 km/h
Fuel tank capacity330 L
Fuel typediesel
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
