Truck crane
JUNTON – Truck Crane 50t
Wheel formula8X4
Dimensions14000x2800x3750 mm
Engine power360 hp
Emission standardEuro 5
Gross vehicle weight42,000 kg

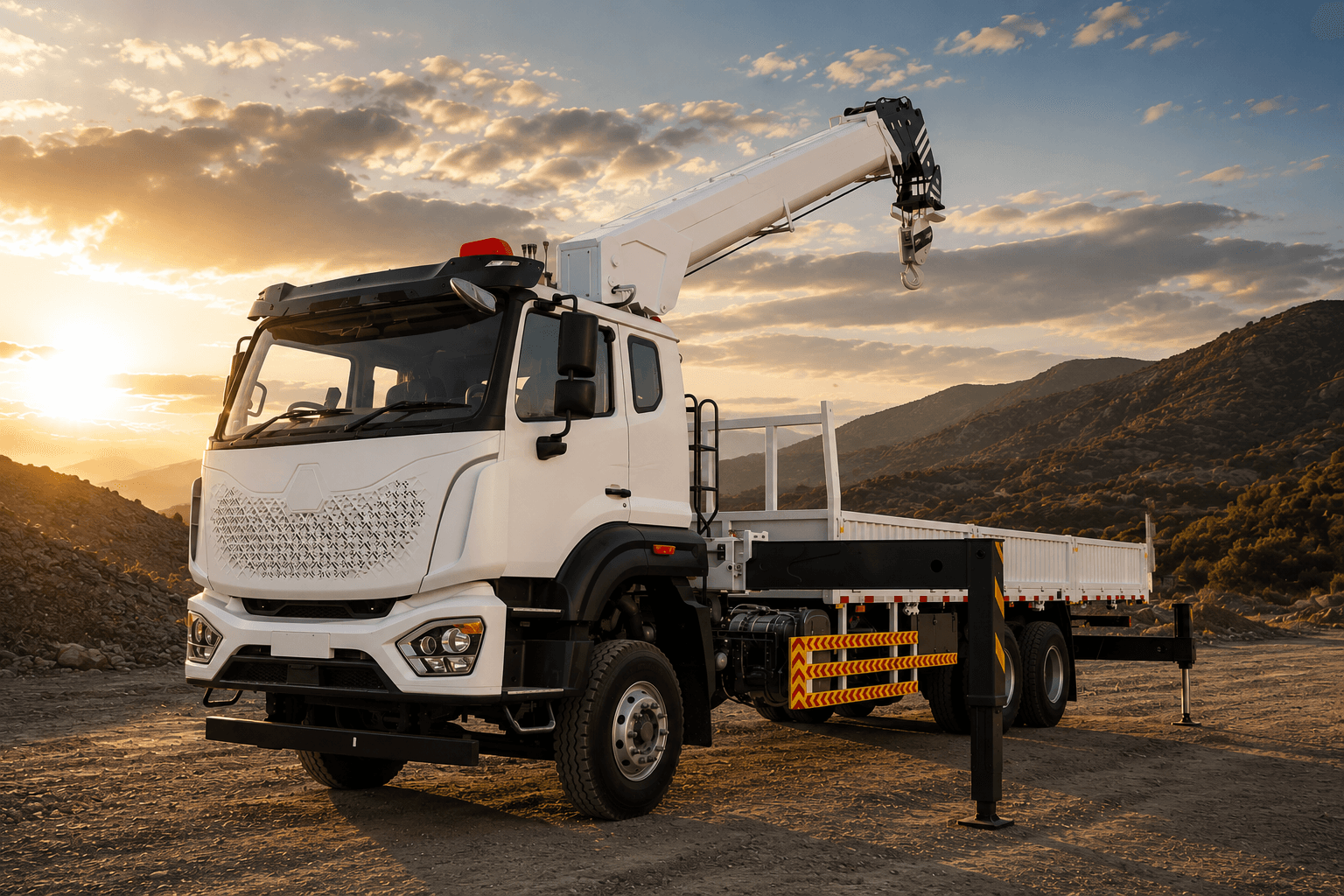

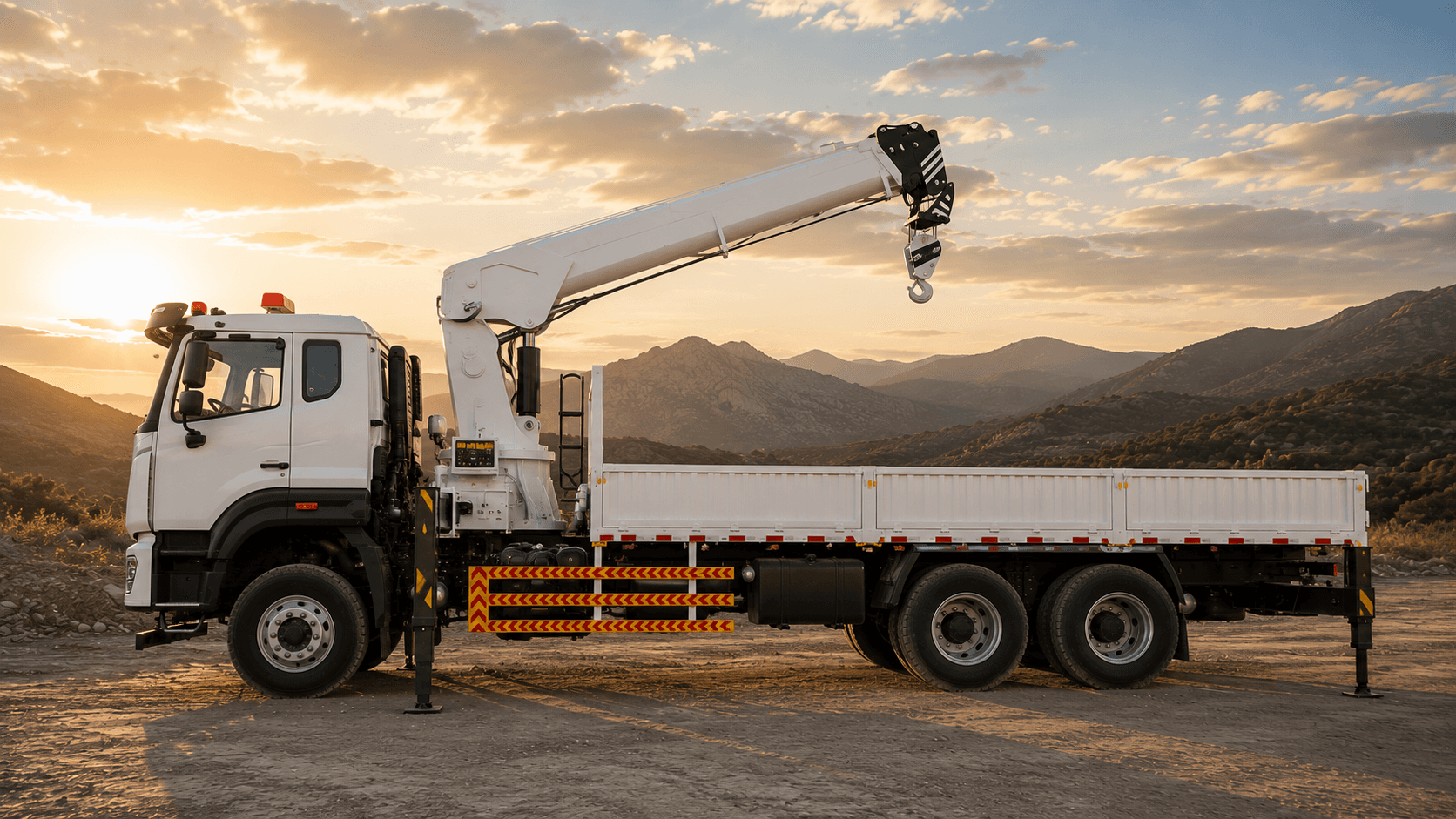

The JUNTON – Truck Crane 50t is a powerful truck crane with a 50 tonnes lifting capacity and a 46+16 m boom reach. It is powered by a 360 hp engine (Euro 5) with a 8X4 wheel formula. Four-way outriggers provide maximum stability when handling heavy loads. It is an excellent choice for construction, installation and infrastructure work. It ships with a factory warranty, genuine spare parts and full technical support from Autotechno.
Wheel formula8X4
Dimensions14000x2800x3750 mm
Engine power360 hp
Emission standardEuro 5
Gross vehicle weight42,000 kg
Boom reach46+16 m
Load capacity50 tonnes
Outriggersfour-way
Steering systemhydraulic power steering
Gearboxmanual 10+2
Tyres315/80R22.5 – 4 pcs, 12R22.5-18PR – 8 pcs
Fuel tank560 L
Cabin2-seater, heating and air conditioning
Warranty2 years or 3000 engine hours
- Low running costs and high reliability.
- Genuine spare parts readily available.
- Factory warranty and full technical support.
